Deeper Smart Sonar CHIRP+ 4
£379.00
In stock
Model:
FNG0071
Reference:
DEEP260320001
Key Features
- Material: ABS
- SonarType: 3 beam
- Frequency (Beam Cone): 100 kHz, 47°; 240 kHz, 20°; 675 kHz, 7°
- Depth Range Max/Min: Max 330 ft / 100 m, Min 0.5 ft / 0.15 m
- Sonar Scan Rate: 15 scans per second
- Operating Temperature: -20°C to 40°C / -4°F to 104°F
- Internal Battery: Lithium-ion polymer, 3.8V Rechargeable, 1300mAh (typical)
- Power Supply Input: 5V DC, 1.5 A Max, Input AC 110V/240V Output USB C
- Connection Range: 394 ft / 120 m (depends on OS and smartphone model)
- Color: Brown Green
- GNSS: GPS, GLONASS, Galileo, BeiDou, QZSS
- Product Size: 2.55in / 6.5cm
- Product Weight: 3.3oz / 94g
- Country Of Origin: Lithuania
- Connection Type: Wireless Wi-Fi connection, 802.11 b/g 2.4GHz channel (max TX power +20dBm), 802.11 g (max TX power +18dBm, RX sensitivity -76dBm)

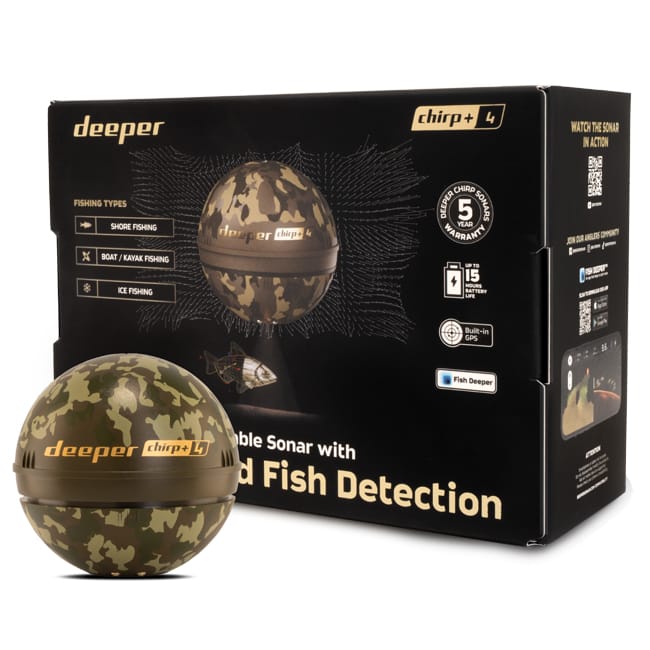

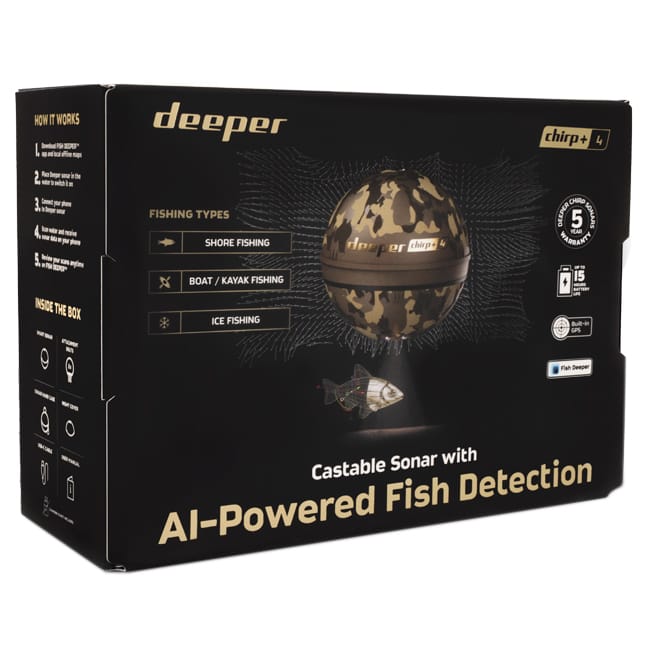

- What's inside the box

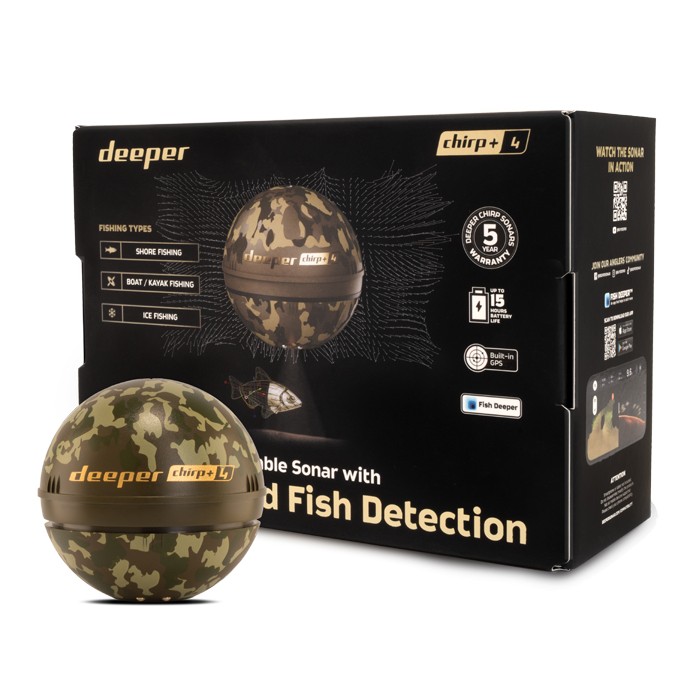

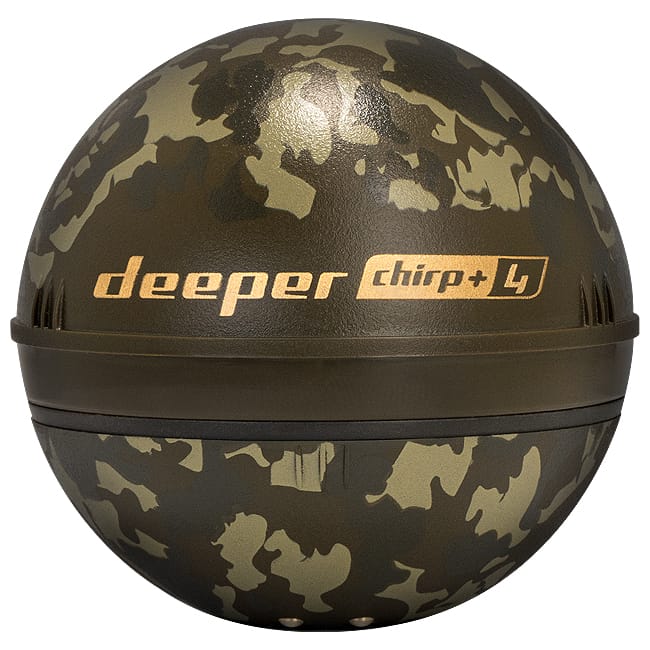

- Sonar (the CHIRP+ 4 unit itself)

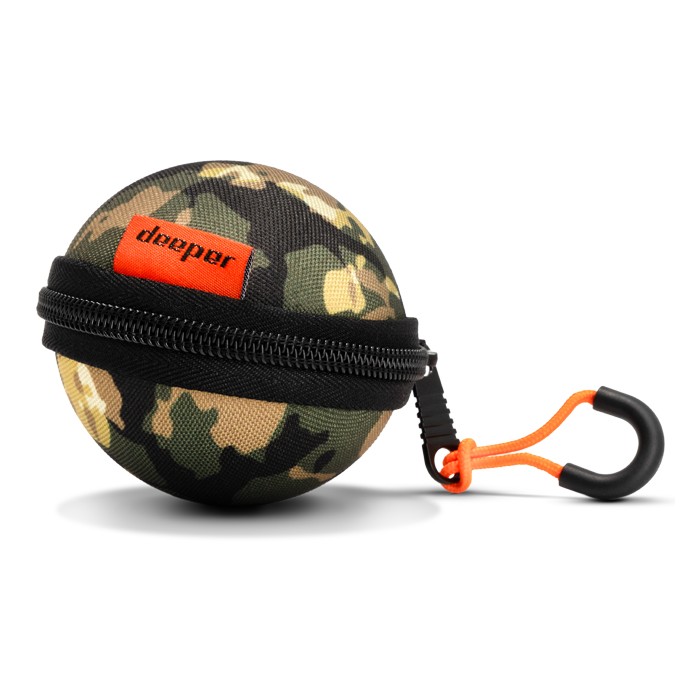

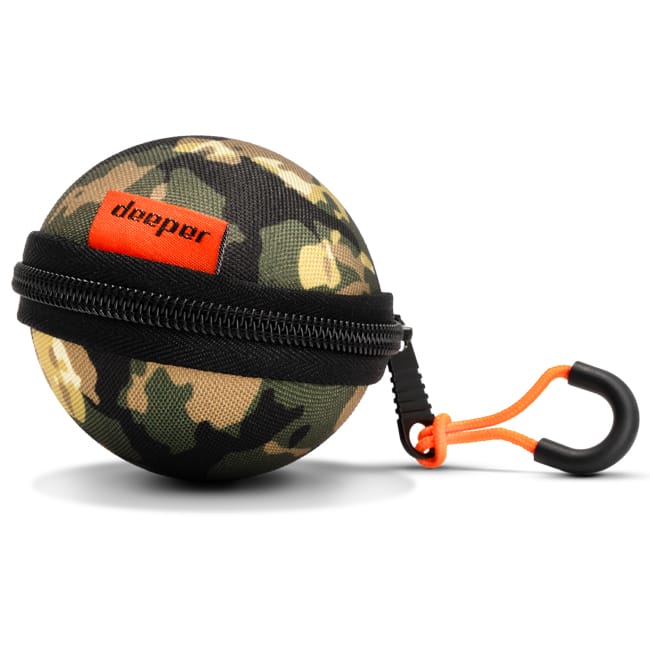

- Hard carrying case

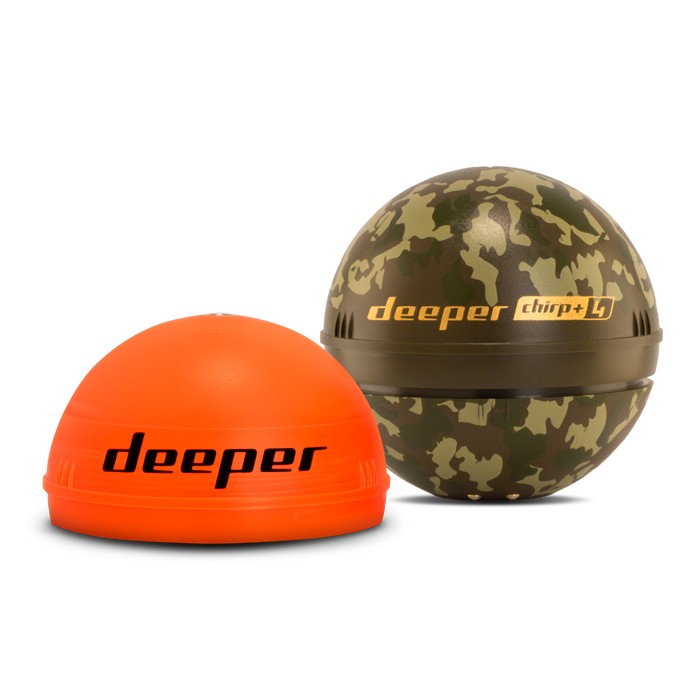

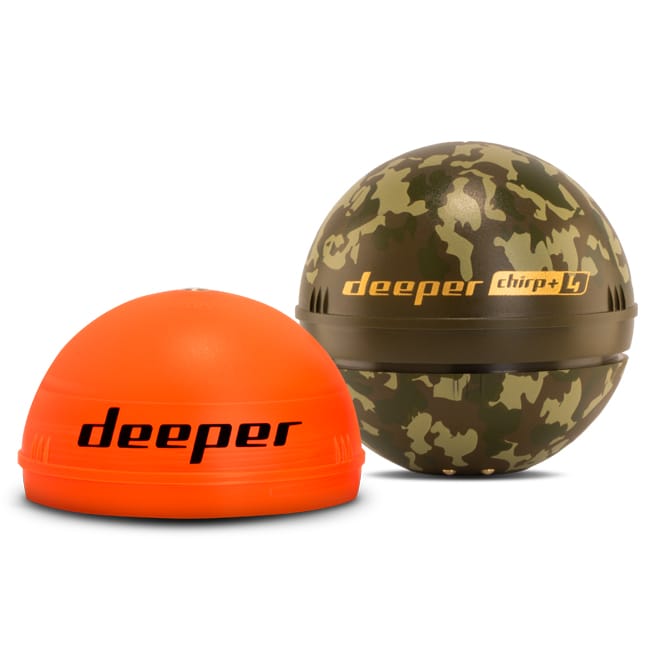

- Night fishing cover/cap
- Charging cable (USB-C)
- Attachment bolts
Free UK Delivery
Join MyAD Plus for just £9.99 a year and get FREE Priority delivery on ALL orders over £25 (1-2 working days)
Free UK Delivery on all orders over £25 (3 to 5 working days)
Priority Delivery from just £6.99 (1-2 working days, please note that during busy periods delivery may take an additional 2-3 working days.)
Interest Free Credit (0% APR)
Award Winning Customer Service
We aim to deliver the best customer service and sales support in our industry. Let's get you the answers you need as quickly as possible.
If you have any queries, please see our frequently asked questions at FAQs
Description

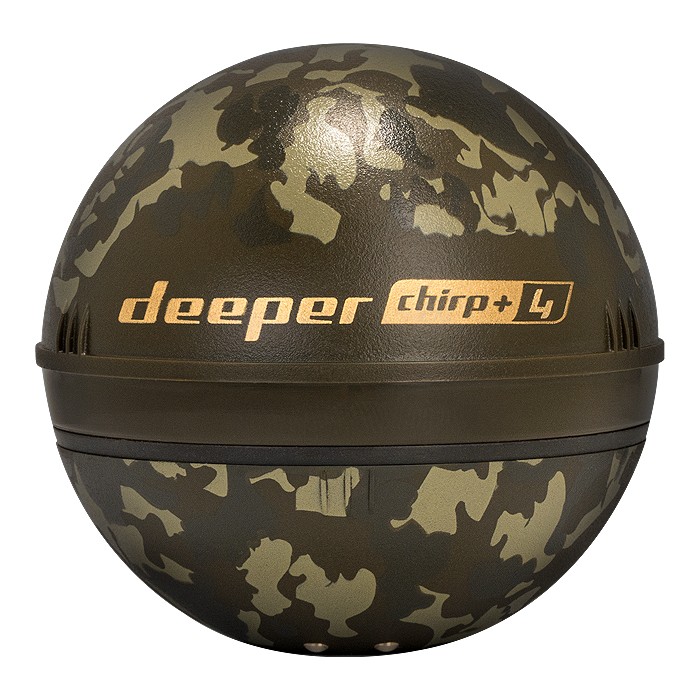

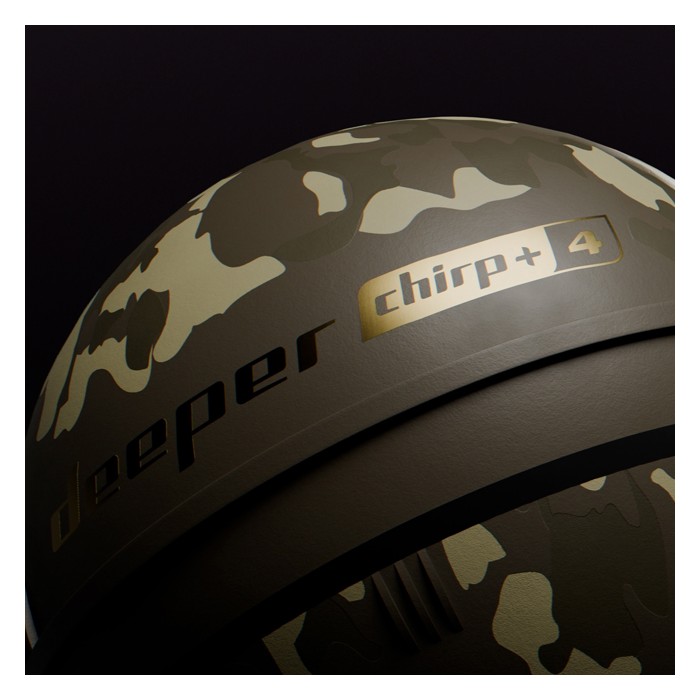

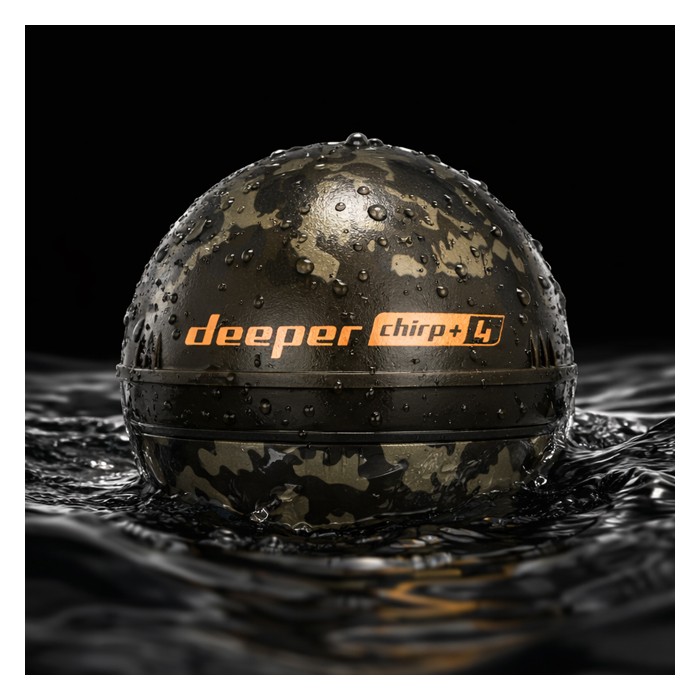

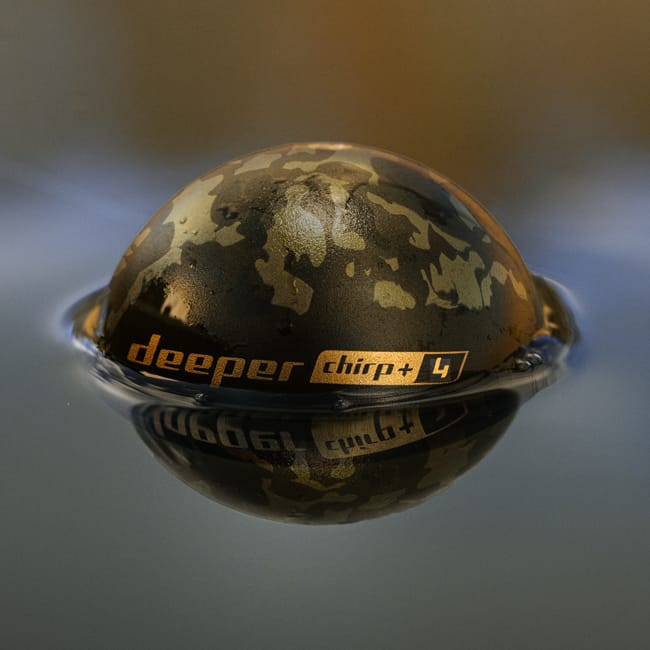

Deeper Smart Sonar CHIRP+ 4
CHIRP+ 4, powered by expert-trained AI, helps distinguish fish from sonar noise. This reduces guesswork, especially in situations where interpreting sonar readings can be challenging.

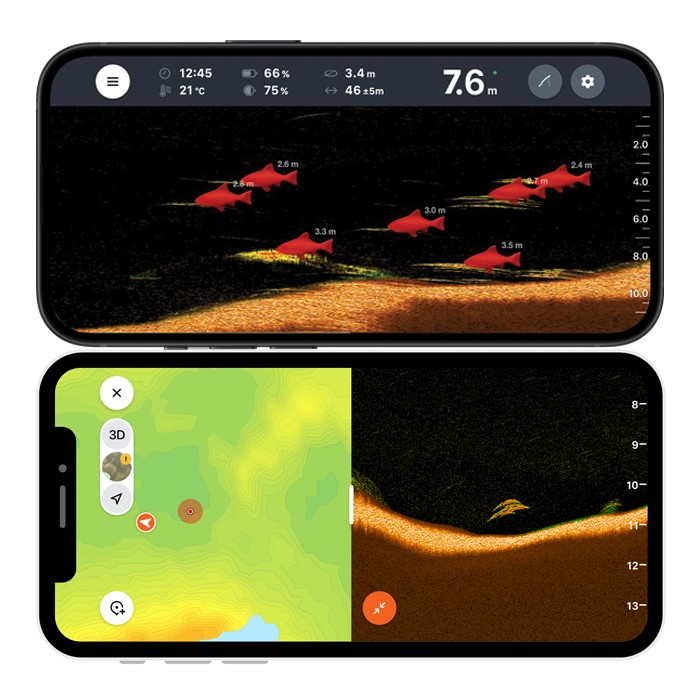

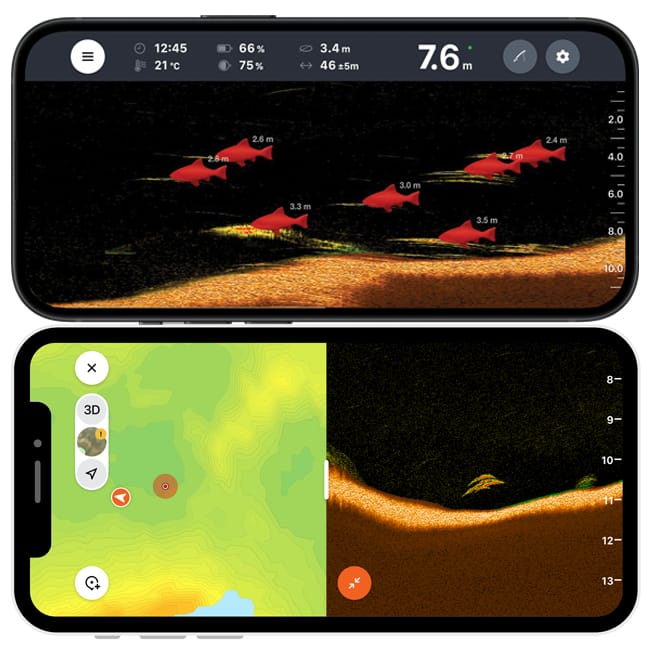

AI Fish Detection – Automatically identify fish in your sonar readings and view them on your personal 3D maps, reducing the need to interpret raw sonar data.

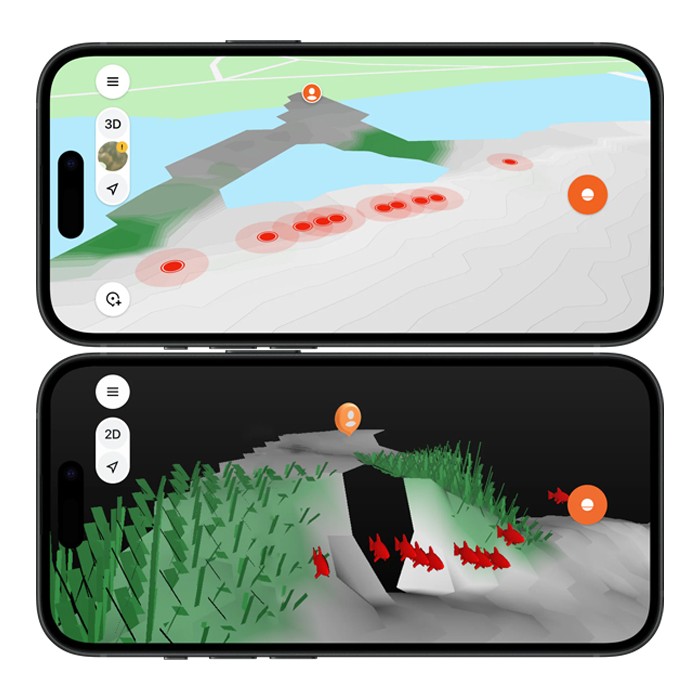

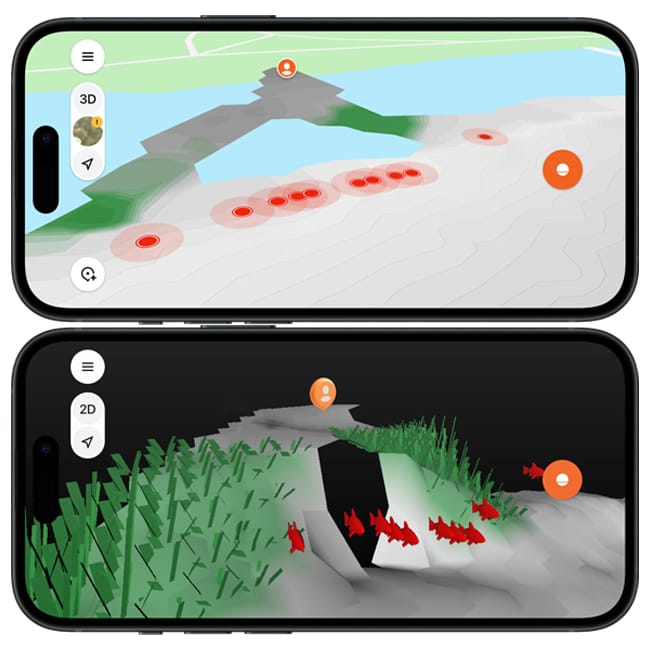

Bottom Structure & Vegetation – Discover bottom structure and vegetation built from your own precise sonar data and locate the most productive fishing spots. Personal Vegetation and Bottom Hardness Maps available in both 2D and 3D.
Triple Beam System – Choose between 3 beam widths and explore the bottom structure in rarely seen clarity with whichever option suits your needs.
3D Clarity – View bottom features like structure, depth, hills, and slopes in 3D with exceptional clarity.
Deeper Chirp+ 4

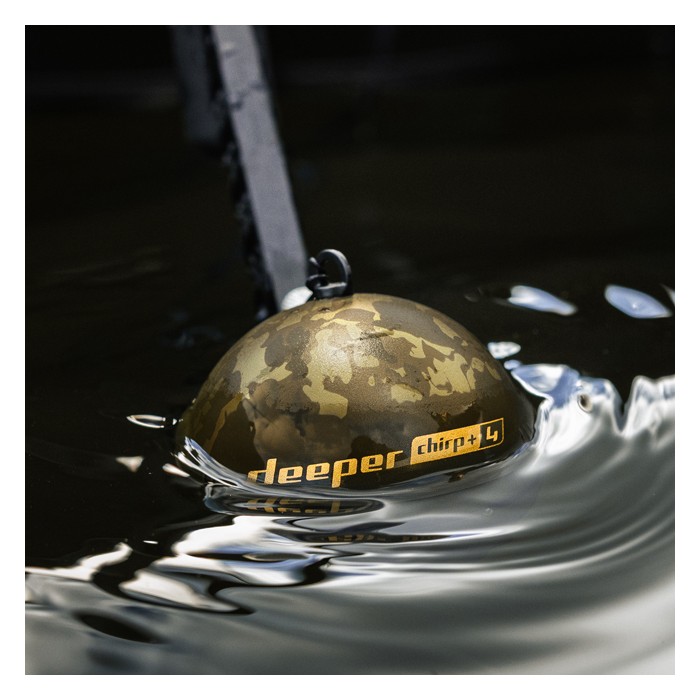

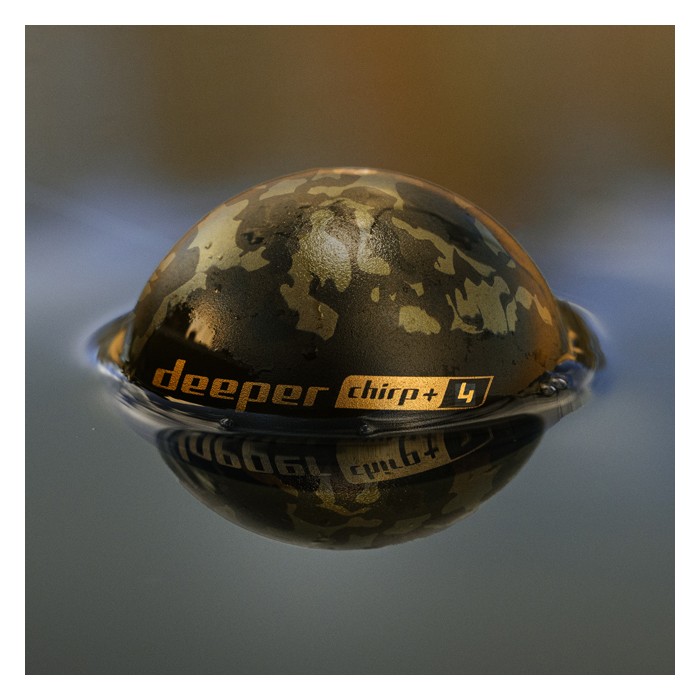

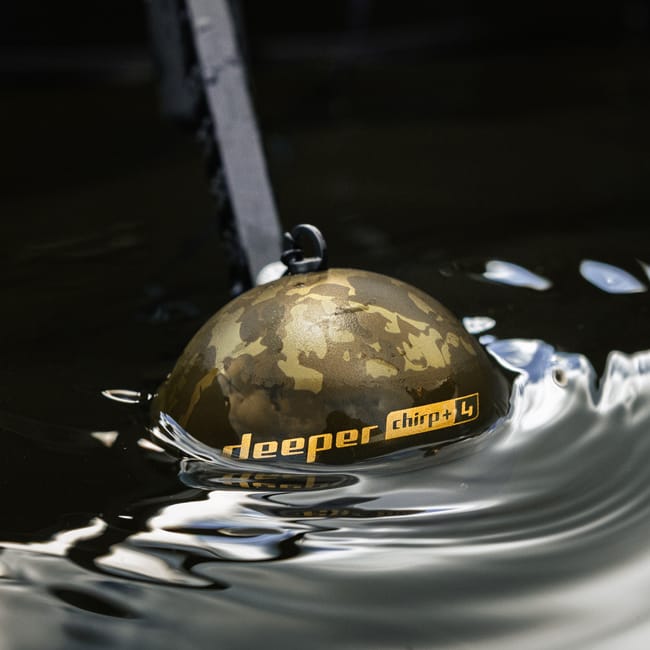

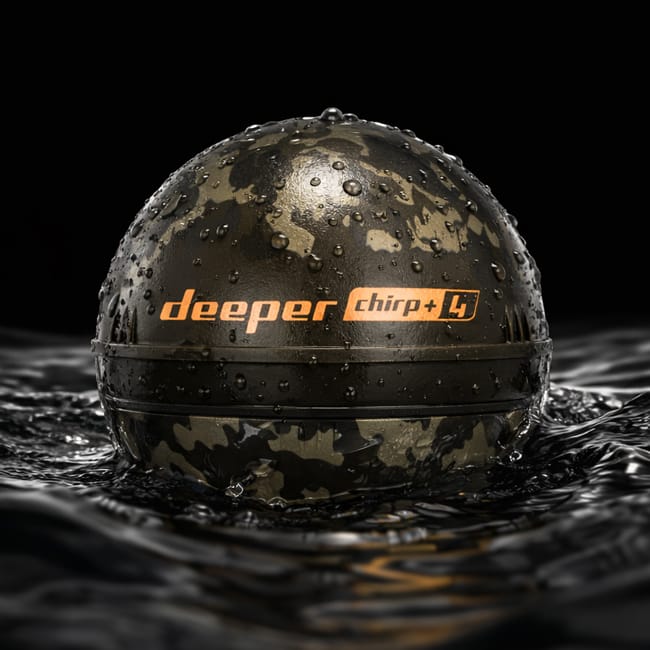

The Deeper CHIRP+ 4 is a next-generation castable sonar designed to remove the guesswork from finding fish. It's the most powerful and the most user friendly castable sonar that Deeper have ever made. Combining powerful CHIRP sonar technology with advanced AI-driven fish detection, it delivers clearer underwater insights and helps Carp Anglers quickly understand what is happening beneath the surface.
Using a machine learning algorithm trained by sonar experts, the Deeper CHIRP+ 4 analyses sonar reflections to accurately recognise fish, reducing the confusion that often comes with interpreting sonar data. Instead of wondering whether you are seeing fish, vegetation, or underwater debris, the system identifies fish based on the shape and pattern of sonar reflections.
The sonar also features enhanced 3D depth mapping and personal mapping tools, allowing anglers to build detailed maps of their favourite venues. In addition to depth data, the CHIRP+ 4 generates bottom hardness maps and vegetation maps in both 2D and 3D, helping you identify productive feeding areas, locate weed beds, and understand underwater structure in greater detail.
Powered by CHIRP sonar technology, the unit emits a wide range of frequencies rather than a single fixed signal. This produces a clearer and more precise image of the underwater environment, improves depth detection, and makes it easier to distinguish between different bottom compositions and underwater objects.
All sonar data is displayed in real time, allowing anglers to react quickly and position their rigs more effectively. By clearly showing fish, bottom structure, vegetation, and depth changes, the Deeper CHIRP+ 4 helps you locate the most promising areas and cast with confidence rather than fishing blindly.

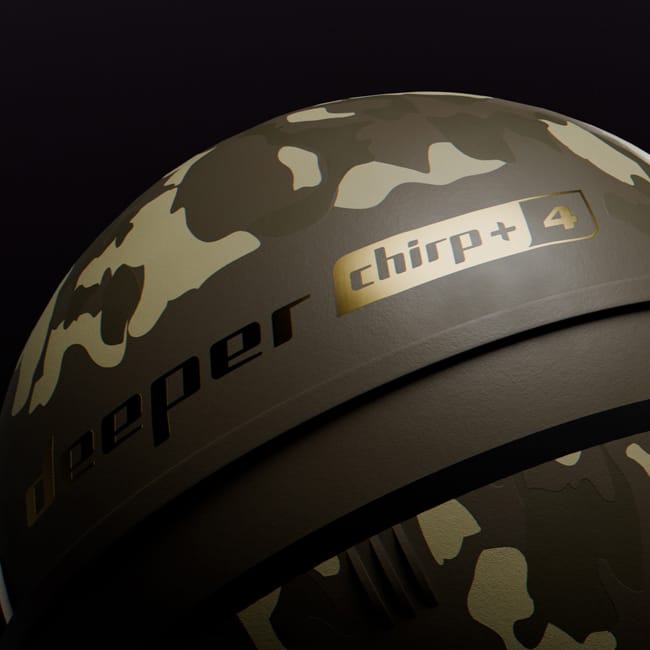

Finished with a new camo design inspired by carp anglers, the Deeper CHIRP+ 4 is carp tech built for everyone from beginners looking for an easier way to read sonar to experienced anglers who demand detailed mapping and accurate fish location data.
